Water quality monitor

  • ORP water quality control instrument
ORP water quality control instrument

ORP water quality control instrument

  • Accurate test data
  • The operation is simple
  • The price is low
  • Can set up and control ozone machine automatically

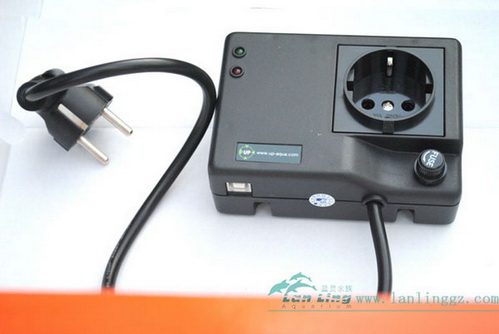

  • Product description: ORP water quality monitor is a kind of equipment that USES electronic probe to measure REDOX potential in water quality. It is attached with a control socket, which can automatically control the aerat
  • INQUIRY
    In aquarium fish or aquaculture processing, Water quality monitor is an important data source equipment. The change of water quality time affects or tanks and the breeding of life. So the important index of water quality real-time on-line detection is very important. Some of the basic indicators including PH, ORP, dissolved oxygen, temperature, etc. Which combines the functions of the above online Water quality monitor is arises at the historic moment.

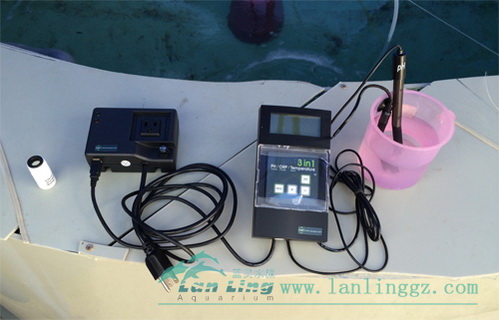

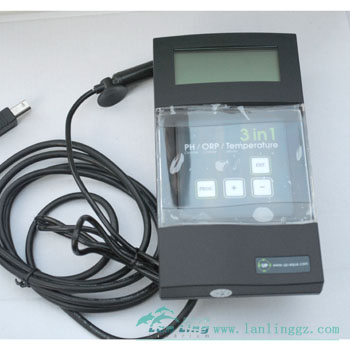

    Aqua was Taiwan aquatic products of high quality brand, Taiwan electronic product quality is also a world reputation. This triad D - 816 water quality detector set temperature, PH, ORP three on-line detection at an organic whole, equipped with a full set of probe and correction liquid. Host with digital display screen and press the touch menu buttons. The essence of this water quality detector is equipped with a control socket, can be within the scope of the set of data through the socket automatic start or shut down by the power of the controller. Is quite intelligent. The whole device is so powerful that reading precision, convenient operation, low failure rate. Is the sort of aquarium gamers and factory aquaculture equipment.




Model: D - 816
Commodity brand: UP parker
Origin of goods: Taiwan
PH PH/REDOX ORP value/temperature display
Electrical specifications:
Using power: AC220V/AC240V, 50/60 hz
Power consumption: about 2 watts
Control power supply specifications: a group of AC240V / 5 a capacity
Fuse: 2 a / 250 v power supply, control the output power of 5 a / 250 v (power supply box)
Control the output voltage: same as the using voltage
Display Numbers: double color LCD backlit LCD display
Control the start-up instructions: LED light indication
Measuring range: PH0 ~ PH14 / - 1999 ~ 1999 mv / 0 ~ 50 ℃ (32 to 122 ° F)
Set the control range: PH3.0 ~ PH11.0 / mv - 1000 ~ 1000
Resolution (reading) : 0.01 mv/PH / 1, 0.1 ℃
Precision (adjusted temperature at 25 ℃) : plus or minus/plus or minus 0.5 ℃ (0.1% + 2 digits)
Input impedance: 10 ⒓ ohms
Start delay: 0 ~ 1.00 PH / 0 ~ 100 mv (5) for the initial value
Alarm set: 0 ~ 2.00 PH / 0 ~ 200 mv (initial value for 30)
Control the choice: "HI" is higher than the set value, the start control power "LO" is lower than the set value, start the control power supply
Correction: button automatic correction PH7.001 (CAL), PH4.00 / PH10.00 (SLOPE)
PH: manually adjust the calibration PH7 (6 ~ 8)/PH4 (2.5 ~ 5.5)/PH10 (8 ~ 12) ORP: + 100 mv
PH electrode state detection: "C1" on behalf of the electricity is very normal
"C2" on behalf of the electricity is very comparable to use state
"C3" on behalf of the electrodes are not need to change the new use
Using the environment temperature: 0 ~ 50 ℃ (32 ~ 122 ° F)
Using the environment humidity: less than 90%
Appearance size: instrument: 165 * 90 * 90 mm (6.5 * 3.6 * 3.6 inch)
Power supply box: 115 x 83 x 42 mm (4.5 * 3.3 * 3.3 inch)

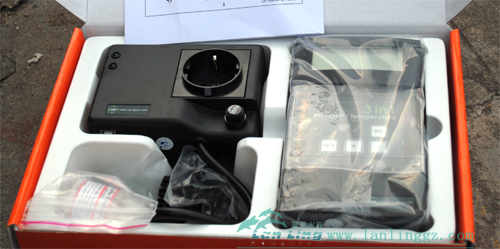

Standard accessories: operating instructions, link up with each one
