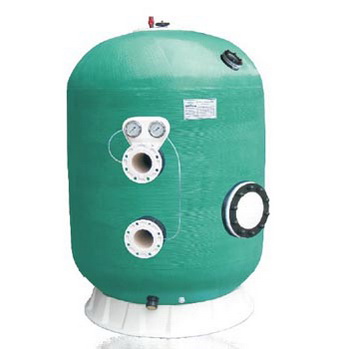

deepened flange type sand filter tank

    Flange type deep-seated side mountsand filter is another version of the deep-seated side mountsand filter. Because the target flow rate is too large, the use of mold production side out of the sand filter cylinder head will cause relatively large resistance to the flow. Deep sand filter cylinder flange type can not only by the larger flow, and because of the sand bed thicker, can greatly improve the accuracy of filtering. It adopts full glass fiber reinforced plastic materials, external use of high strength glass fibre layer upon layer winding. Supplemented by high strength special resin, making the whole sand filter cylinder has a considerable impact strength. So it can withstand internal 0.35 MPa water pressure and deformation, no leakage. Under the condition of the wild, flange type deep sand filter cylinder can also be placed in the outdoor environment without fear of ultraviolet aging. In addition, deep sand filter cylinder flange type because of its unique manufacturing materials, can be applied to acid in strong alkaline environment water treatment.

    Flange type deep-seated side mountsand filter is only a container for filtering material and its application in water treatment industry, should install the control valve can have the reverse function. In order to timely accumulation in sand filter tank of sewage discharge. In addition, the sand filter cylinder front should lead a pressurized water pump, and pump head should not be not less than 10 m and not more than 35 m.

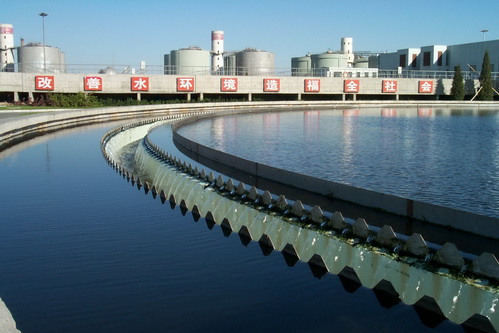

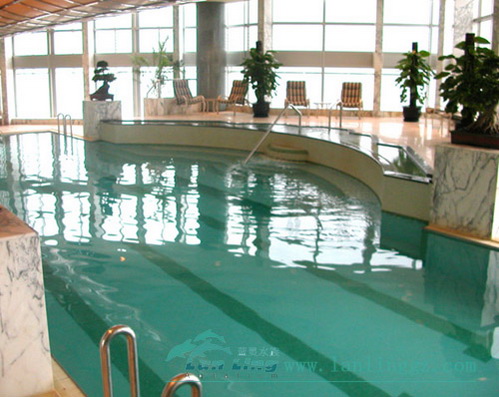

    Circulating water aquaculture engineering, swimming pool water treatment engineering, sewage treatment engineering, water treatment, landscape water treatment, etc.

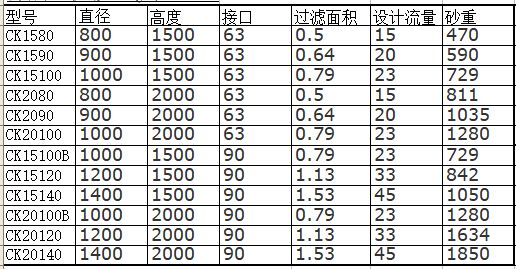

Specification parameter
